Your Best Type A Rod Pump Manufacturer

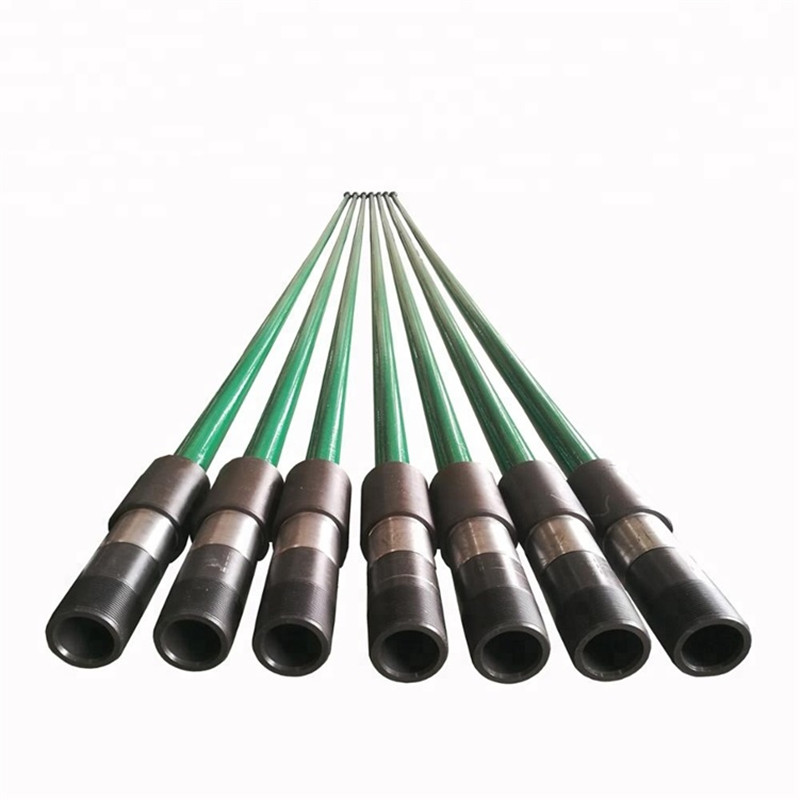

Type A Rod Pump

Material: SS, alloy steel, brass
Surface treatment: chrome-plating
Length and diameter: Customized
Annual output: 10000 sets per year
Package: Wooden case
Certification: international certificate
MOQ: 1set
Delivery: 45 days

Sanjack: Your Premier Choice Of Type A Rod Pump

Sanjack has 40 years’ experience in designing and manufacturing Type A Rod Pump,participating in the draw up of the national standard of downhole pump. The annual production reaches 10,000 sets. The products have been provided in the U.S.A, Canada, Venezuela, India Kazakhstan and etc.

Sanjack: Your Best China Type A Rod Pump Manufacturer and Supplier

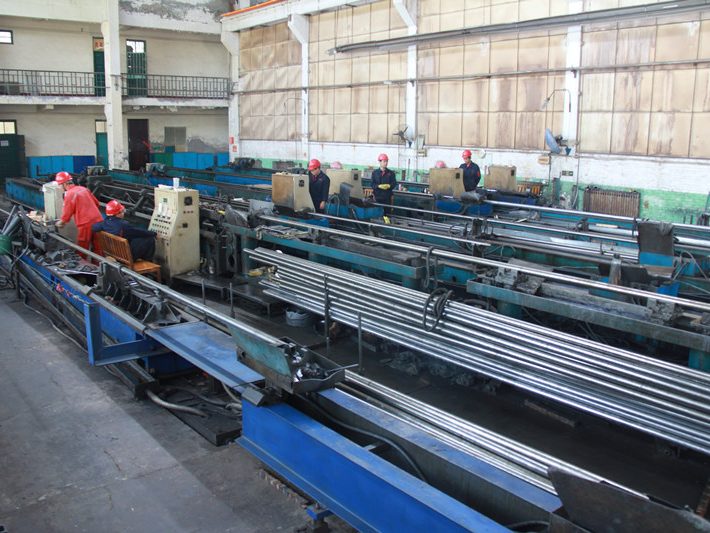

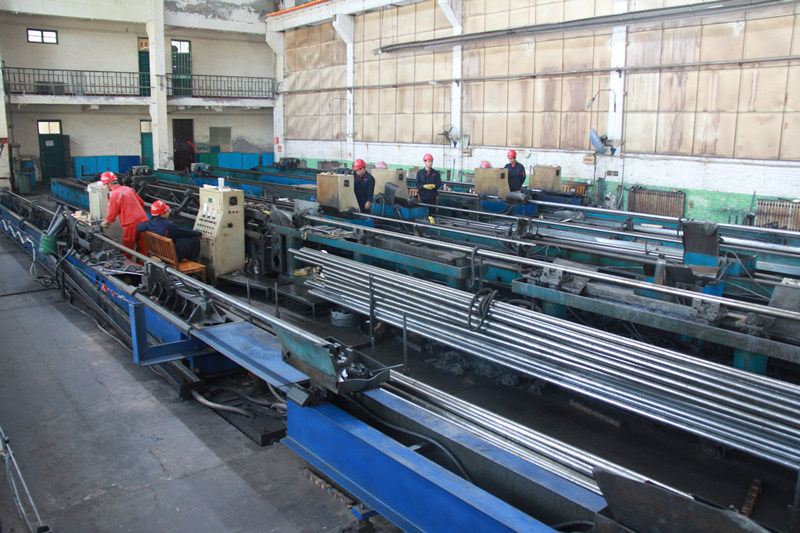

Sanjack electroplating workshop of the rod pumps enjoys countrywide advanced chrome plating equipment for well type deep hole pump barrel, which can process pump barrels ranging from 1 1/4 in (31.75 mm) to 5 3/4 in (146.05 mm) and with a length up to 34 ft (10363 mm). Our workshop can also do chemical plating on the inner wall of the pump barrel. In addition to conventional material barrels, we also offer stainless steel barrels and brass barrels.

Sanjack: Your Best Place To Type A Rod Pump In China

The type pumps RHA made of Sanjack are heavy wall, stationary barrel, top anchor design insertable pumps. Available with either 3 cup type hold down (RHAC) or with a mechanical lock hold down (RHAM), RHA pumps allow a greater operating depth due to their heavy wall barrel. Insertable pumps can be removed from the well without having to remove the production tubing. Top anchor design means ideal for sandy wells.

Sanjack: The Advantages With Us You Should Know

1.Components are offered in a broad range of materials so that pumps can be tailored to any environment for maximum cost efficiency and pump life.
2.A variety of exclusive pump accessories extends the range of pump applications to provide greater versatility, adaptability and value.
3.Extension couplings threaded into the barrel couplings permit the plunger to stroke out of the barrel at each end of the stroke. This stroke-through design combats buildup of scale on the inside of the pump barrel.
4.The thick wall integral pump barrel with special coupling has good sealing performance, superior assembly strength and stiffness, and is suitable for the worst environment.

An all-metal plunger pump, the rod pump offers heavy-duty construction. The barrels are made from 3/16-in. wall tubing and are externally threaded, which provides extra strength and permits spacing the pump so that the plunger can stroke out both ends of the barrel. This stroke-through design combats buildup of scale on the inside of the pump barrel.

RHA insert pumps are heavy-walled，stationary barrel, top anchor pumps recognized by international standards as a standard design. These pumps are suitable for moderate depths with high sand fallback on well shutdown. Fluid dispersion directly above the seat nipple prevents the pump from becoming stuck in such a situation.
