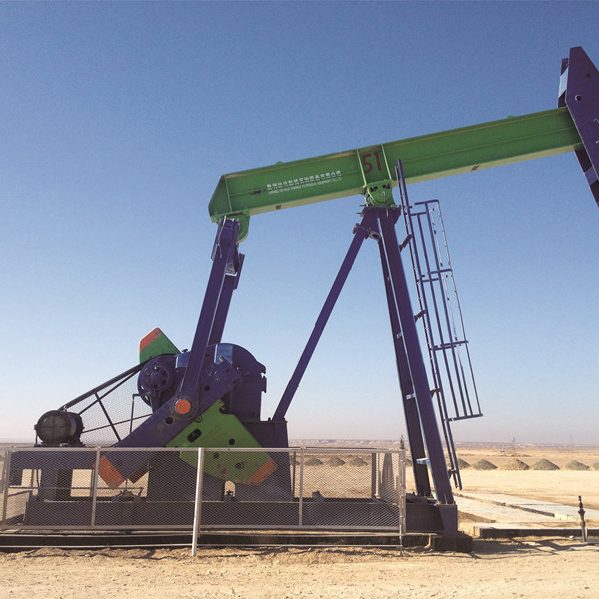

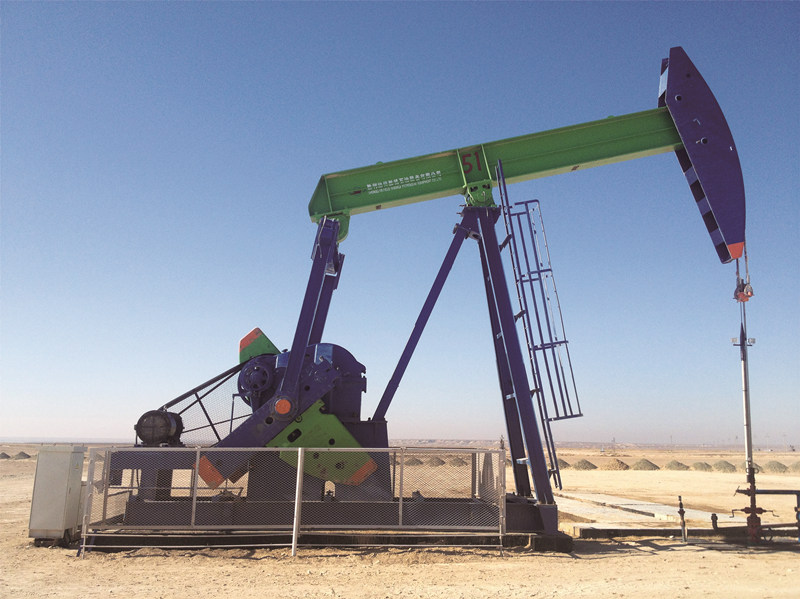

Your Best Compound balanced Pumping Unit Manufacturer

Compound balanced Pumping Unit

Model: CYJ
MaxLoad rating（kN）: 170
MaxStroke length（m）：5
Max Stroke frequency （min-1）：6
Annual output: 1000 sets per year
Package: Container
Certification: ChineseGB standard
MOQ: 1set
Delivery: 45 days

Sanjack: Your Premier Choice Of Compound balanced Pumping Unit

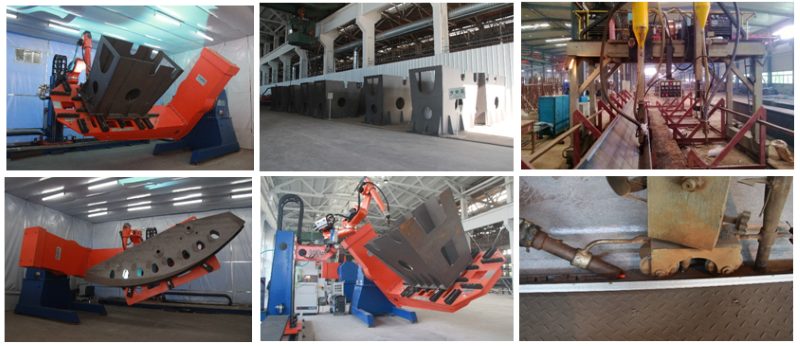

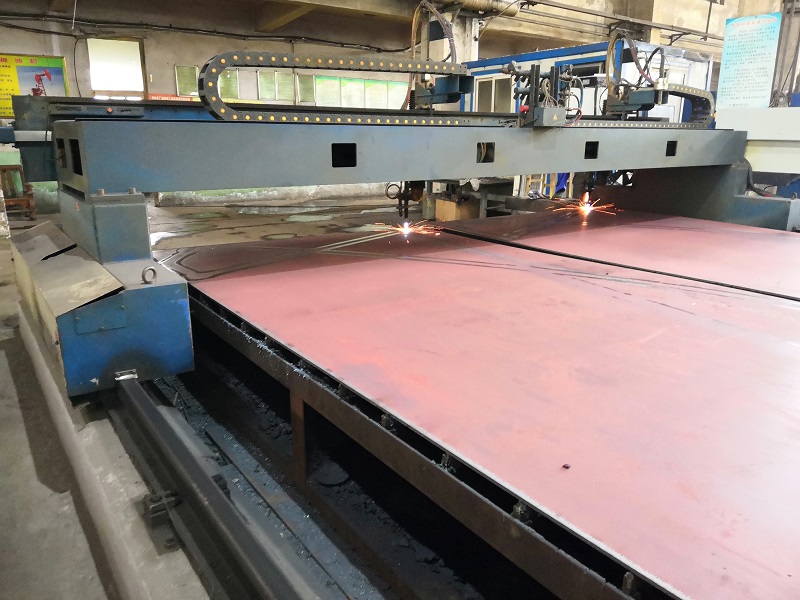

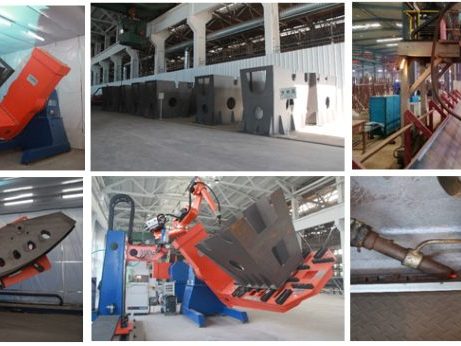

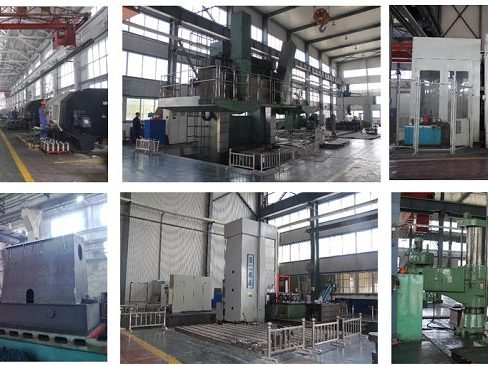

Sanjack owns a strong ability about research, design and pumping units manufacture, with an annual output of 1000 units. Our company has a welding workshop of 17942 square meters, covering an area of 64952 square meters; It has complete inspection and testing equipment and more than 130 advanced production facilities.

Sanjack: Your Best China Compound balanced Pumping Unit Manufacturer and Supplier

To increase well production, improve mechanical efficiency and decrease power consumption, Sanjack has designed a series of new beam pumping units based on compound balanced units.

Sanjack: Your Best Place To Compound balanced Pumping Unit In China

There are 4 senior engineers, 12 intermediate engineers, 7 assistant engineers, 4 senior technicians and 12 technicians in the pumping unit. Intermediate and senior workers account for more than 90% of all workers. The superb technical level of employees provides a technical guarantee for the production of customized pumping units.

Sanjack: The Advantages With Us You Should Know

1.The compound balanced pumping unit is designed and developed by SANJACK Petro to address the inherent shortcomings of traditional beam pumps, such as high energy consumption and unsuitability for heavy oil production.
2.Sanjack compound balance pumping unit has obtained the national patent.
3Compound balanced pumping unit is widely used in Chinese oil fields and exported to Kazakhstan, Algeria and other countries.

Parameter Table
Model		CYJY8-3-37HF	CYJY10-3-53HF	CYJY12-4.2-73HF	CYJY14-5.4-89HF	CYJY16-5.4-105HF
Load rating（kN）		80	100	120	140	160
Stroke length（m）		3；2.5；2	3；2.5；2	4.2；3.6；3	5.4，4.5，3.6	5.4，4.5，3.6
Stroke frequency （min^-1）		6，5，4	6，5，4	6，5，4	3，4，5	3,,4, 5
Crank direction		Clockwise
Balanced type		Compound balanced
Gear Reducer	Model	CJH-850	CJH-1000	CJH-1000	CJH-1100	CJH-1200
	Gear ratio	28	31.73	31.73	39.52	30.246
	Rated torque(kN^.m)	37	53	73	89	105
Motor	Model	Y225M-8	Y250M-8	Y280M-8	Y315S-8	Y315M-8
	Power（kW）	22	30	45	55	75
	Speed （r/min）	730	730	740	740	740
Structure unbalance（kN）		7.6	7.7	6	-6.7	-7.2
Total Weight（t）		18.6	19.5	25.3	32	34.5
Size（m）		8.24×2.2×6.793	8.24×2.27×6.793	11×2.7×8.7	10.58×2.74×10.15	10.58×2.74×10.15
